Home > Ktm > Current Range > Ktm 2025KTM1390SuperDukeREVO

Ktm 2025KTM1390SuperDukeREVO THE BEAST, EVOLVED

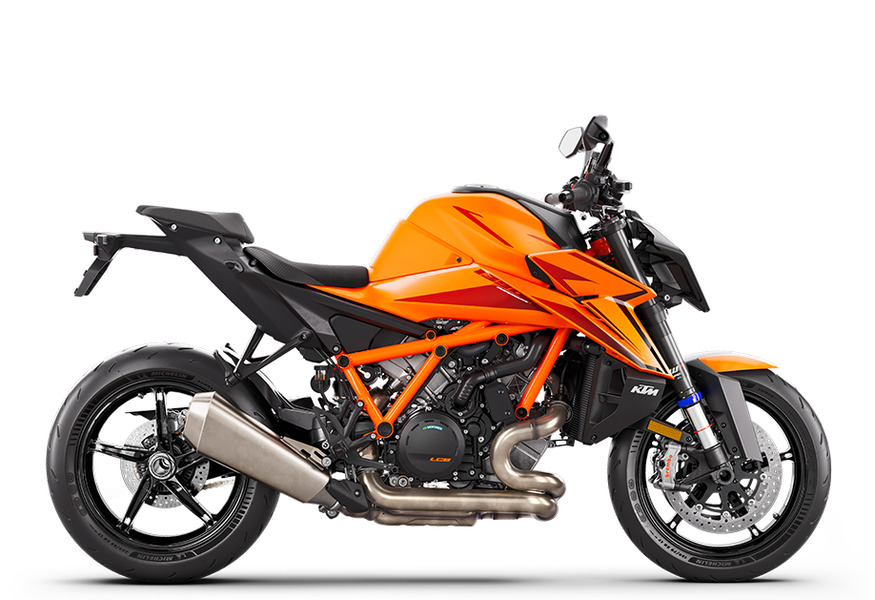

  • Picture of Ktm 2025KTM1390SuperDukeREVO

DescriptionSpecifications
The KTM 1390 SUPER DUKE R EVO is truly an evolved BEAST. Not only does it share the same advancement as the all-new KTM 1390 SUPER DUKE R, but it also brings intuitive WP Semi-Active Suspension Technology (SAT) to the fore. Being able to automatically adapt its suspension to the riders input or the road surface, it brings intelligence to the tarmac and into the hunt. This motorcycle is designed, developed and produced in Austria.


View More Info on KTM Website

Engine

  • Primary drive 40:76
  • Torque 145 Nm
  • Transmission 6-speed
  • Battery capacity 11.2 Ah
  • Cooling Liquid cooled with water/oil heat exchanger
  • Secondary gear ratio 17:38
  • Power in KW 140 kW
  • Starter Electric starter
  • Stroke 71 mm
  • Bore 110 mm
  • Clutch PASC slipper clutch, hydraulically operated
  • CO2 emissions 139 g/km
  • Compression ratio 13.2
  • Displacement 1350 cm³
  • EMS Keihin EMS with RBW and cruise control, double ignition
  • Design 2-cylinder, 4-stroke, V 75°
  • Fuel consumption 5.9 l/100 km
  • Fuel-mixture generation Keihin EFI (throttle body 60 mm)
  • Lubrication Forced oil lubrication with 3 oil pumps
  • Power in hp 188 hp

Chassis

  • Weight (without fuel) 200 kg
  • Tank capacity (approx.) 17.5 l
  • Wheelbase 1491 mm
  • Front brake disc diameter 320 mm
  • Rear brake disc diameter 240 mm
  • Front brake 2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm
  • Rear brake Brembo twin-piston fixed calliper, brake disc
  • Chain 525 X-Ring
  • Frame design Chromium-Molybdenum-Steel trellis frame, powder coated
  • Front suspension WP APEX-USD Ø 48 mm, semi-active (Gen 3)
  • Ground clearance 149 mm
  • Handlebar Tapered aluminum Ø 28/22 mm
  • Rear suspension WP APEX-linkage shock, semi-active (Gen 3)
  • Seat height 834 mm
  • Silencer Stainless steel primary and secondary silencer with two catalytic converters
  • Steering head angle 65.3 °
  • Rear subframe design Cast aluminium / Composite
  • Suspension travel (front) 125 mm
  • Suspension travel (rear) 140 mm
  • Tyre dimensions (front/rear) 120/70; 200/55
  • Wheels 3.50 x 17"; 6 x 17"
  • Wheels Cast aluminium wheels
  • Wheelbase 1491 ± 15 mm
View Specs on KTM Website
