Ktm 2025KTM1390SuperAdventureS SET YOUR COURSE - AND SLAY IT

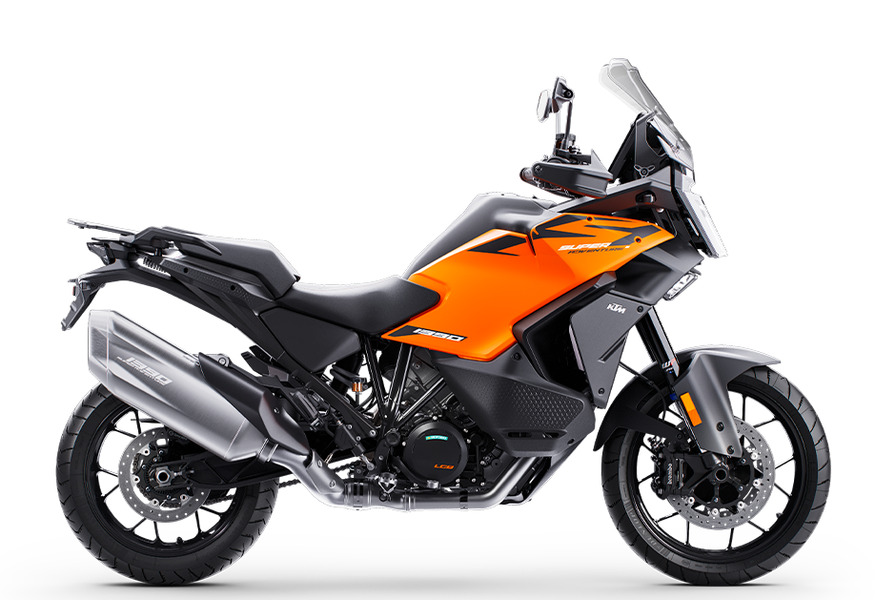

  • Picture of Ktm 2025KTM1390SuperAdventureS

DescriptionSpecifications
The KTM 1390 SUPER ADVENTURE S is for thrill-seekers who live for fast-paced adventure and demand the control of a manual transmission. Boasting fresh new tech, muscular looks, and a 173 hp punch, the S is aimed at riders who want to explore the world on the tarmac - but with the option to hit the dirt if it calls - this street-eating Adventure machine is engineered to cover ground. Fast. This motorcycle is designed, developed, and produced in Austria.

Engine

  • Primary drive 40:76
  • Torque 145 Nm
  • Transmission 6-speed
  • Cooling Liquid cooled with water/oil heat exchanger
  • Secondary gear ratio 17:42
  • Power in KW 127 kW
  • Starter Electric starter
  • Stroke 71 mm
  • Bore 110 mm
  • CO2 emissions 139.5 g/km
  • Compression ratio 13
  • Displacement 1350 cm³
  • EMS Keihin EMS with RBW, twin ignition
  • Design 2-cylinder, 4-stroke, V 75°
  • Fuel consumption 6.7 l/100 km
  • Fuel-mixture generation Keihin EFI (throttle body Ø 54 mm)
  • Lubrication Forced oil lubrication with 3 oil pumps
  • Power in hp 170 hp

Chassis

  • Weight (without fuel) 227 kg
  • Tank capacity (approx.) 23 l
  • Wheelbase 1558 mm
  • Front brake 2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm
  • Rear brake Brembo 2-piston, fixed caliper, brake disc Ø 267 mm
  • Chain 525 X-Ring
  • Frame design Chromium-Molybdenum-Steel trellis frame, powder coated
  • Front suspension WP SAT (semi-active technology) Upside-Down Ø 48 mm
  • Ground clearance 223 mm
  • Handlebar Tapered aluminum Ø 28/22 mm
  • Rear suspension WP SAT (semi-active technology) shock absorber
  • Seat height 847/867 mm
  • Steering head angle 65.2 °
  • Rear subframe design Aluminium, powder-coated
  • Suspension travel (front) 200 mm
  • Suspension travel (rear) 200 mm
  • Tyre dimensions (front/rear) 120/70; 170/60
  • Wheels 3.50 x 19"; 5 x 17"
  • Wheels Cast aluminium wheels
  • Wheelbase 1558 ± 15 mm
