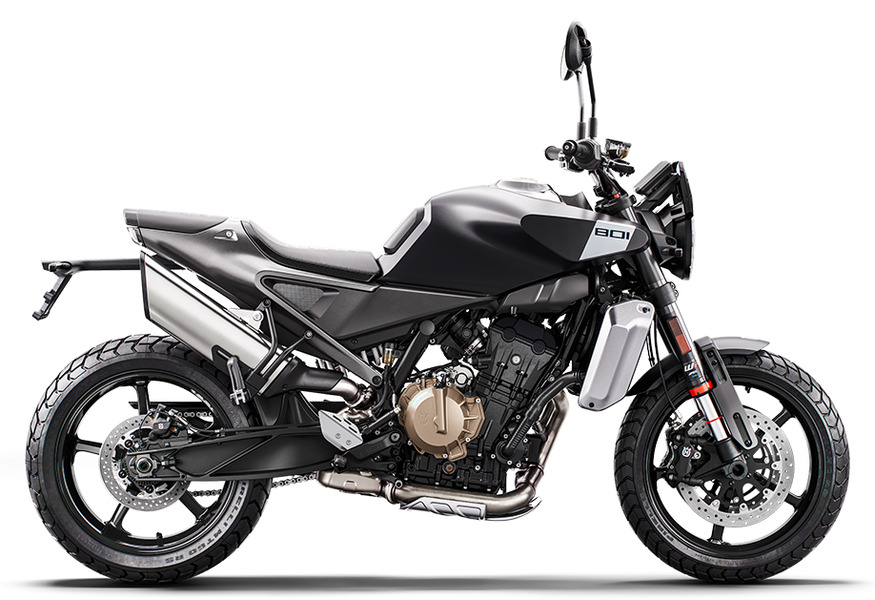

Husqvarna Svartpilen 801 2025

DescriptionSpecifications

By combining exceptional versatility, performance, and minimalistic styling, the Svartpilen 801 makes sure you own the road. Beneath the dark tones of the scrambler-inspired aesthetics, a compact and powerful parallel-twin engine gets you where you need to be. A twist of the wrist always delivers exceptional torque to the rear wheel. The beautifully crafted and perfectly balanced chassis is enhanced by the refined ergonomics that create an engaging and intuitive riding experience through both city streets and out onto the open road. Adjustable WP suspension ensures every rider can create a personalised and comfortable setting while the extensive selection of state-of-the art electronic aids add multiple levels of customisation.

View More Info on Husqvarna Website

Engine

Primary drive 39:75
Transmission 6-speed
Cooling Liquid cooled with water/oil heat exchanger
Secondary gear ratio 16:41
Power in KW 77 kW
Starter Electric starter
Stroke 65.7 mm
Bore 88 mm
Clutch Cable operated PASC slipper clutch
CO₂ emissions 106 g/km
Compression ratio 12.5
Displacement 799 cm³
EMS Bosch EMS with RBW
Design 2-cylinder, 4-stroke, parallel twin
Fuel consumption 4.5 l/100 km
Fuel-mixture generation DKK Dellorto (Throttle body 46mm)
Lubrication Forced oil lubrication with 2 oil pumps

Chassis

Weight (without fuel) 181 kg
Tank capacity (approx.) 14 l
Wheelbase 1.475 mm
Front brake disc diameter 300 mm
Rear brake disc diameter 240 mm
Front brake 2x radially mounted 4 piston caliper
Rear brake Single-piston floating calliper
Chain 520 X-Ring
Frame design Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front suspension WP APEX 43
Ground clearance 174 mm
Handlebar Aluminum, tapered with cross member, Ø 28/22 mm
Rear suspension WP APEX - Monoshock
Seat height 820 mm
Silencer Stainless steel primary and secondary silencer
Steering head angle 65.5 °
Rear subframe design Cast aluminium, powder coated
Suspension travel (front) 140 mm
Suspension travel (rear) 150 mm
Wheels 3.50 x 17"; 5.50 x 17"
Wheels Cast aluminium wheels
Wheelbase 1.475 ± 15 mm

View Specs on Husqvarna Website
